1x4 HDMI POE Extender Splitter Converter with HDMI Loop-Out Over CAT6/6a/7 V379219
1x4 HDMI POE Extender Splitter Converter with HDMI Loop-Out Over CAT6/6a/7 V379219
Support resolution up to 4Kx2K@60Hz.Plug and Play.
Transmitter support one HDMI Loop-out.Support 20~60Hz IR pass back.
Wall-mounted function, easy installation.
Compatible with CAT6/6a/7 network cables.Support distance up to 30m when 4K@60Hz,50m when 4K@30Hz and 60m when 1080P@60Hz
Distribute 1 HDMI source to 4 HDMI displays over network cable simultaneously.Can be powered by network cable.It only needs to connect the 12V power on the transmitter unit,both transmitter and receiver start work.

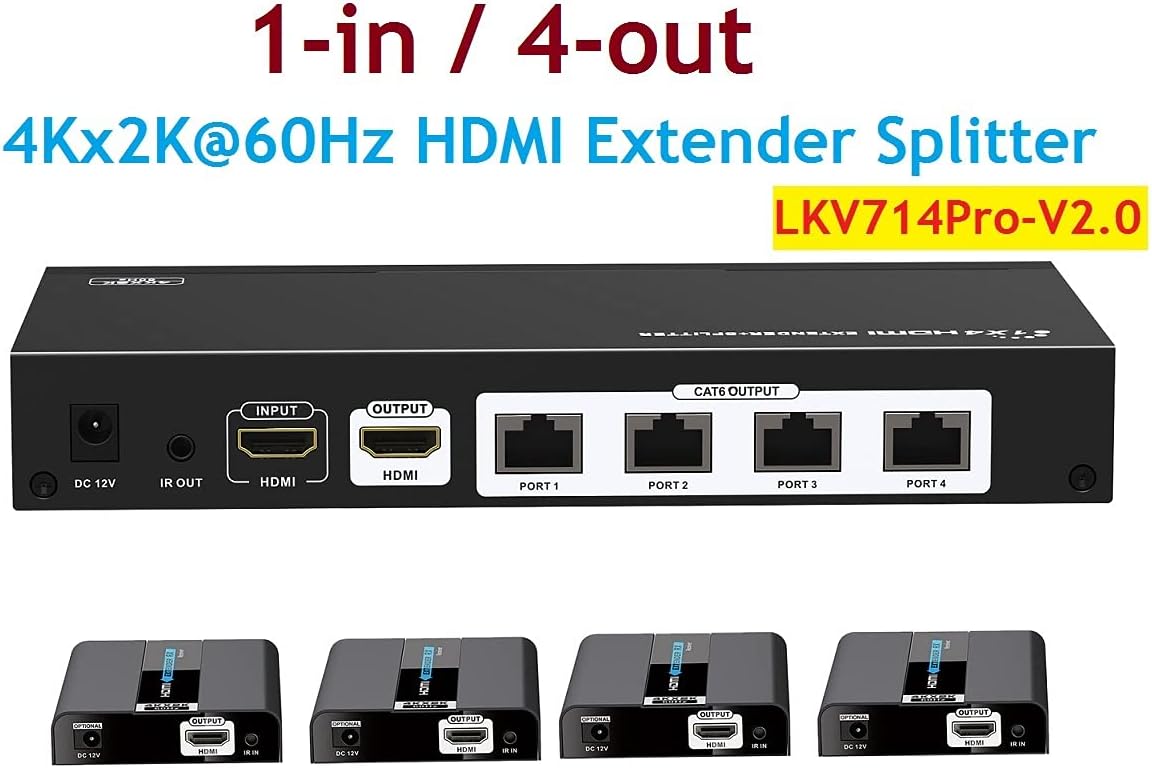

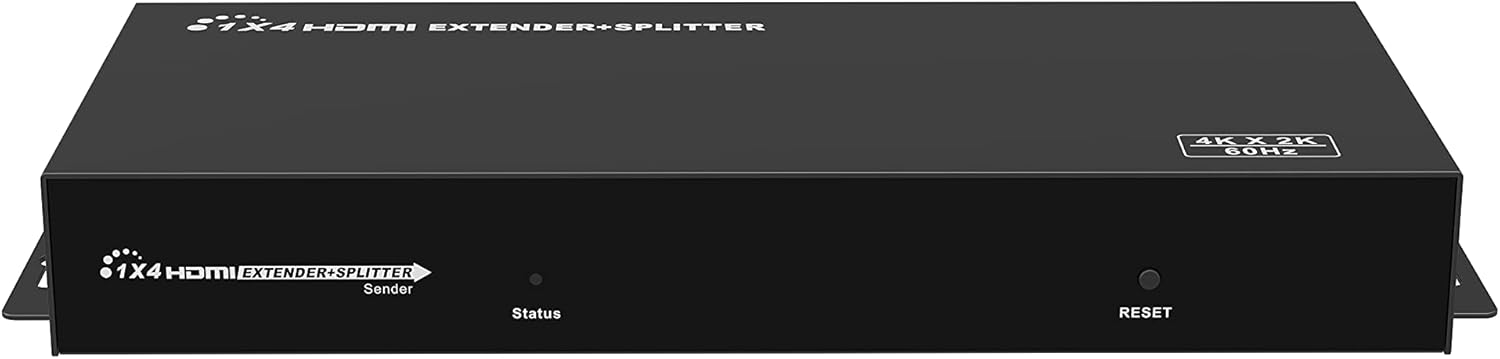

LKV714Pro-V2.0This HDMI extender splitter(transmitter ) works with 4 HDMI CAT6 extender receivers to distribute and extend 1 HDMI source to 4 HDMI displays over single CAT6/6a/7 cable up to 30m/100ft. The highest resolution supported is 4Kx2K60Hz, and it supports IR passback,only one power adapter for the transmitter is needed,the Receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, Video conference and show center, ect. Features: 1. Plug and Play. 2. Support 20~60Hz IR pass back. 3. Support resolution up to 4Kx2K60Hz. 4. Transmitter support one HDMI Loop-out. 5. Wall-mounted function, easy installation. 6. Compatible with CAT6/6a/7 network cables. 7. Support distance up to 30m when 4K60Hz,50m when 4K30Hz and 60m when 1080P60Hz 8. Distribute 1 HDMI source to 4 HDMI displays over network cable simultaneously. 9. Can be powered by network cable.It only needs to connect the 12V power on the transmitter unit,both transmitter and receiver start work. Package Included: 1 x HDMI Transmitter Unit 4 x HDMI Receiver Unit 4 x IR Receiver cable 1 x IR Blaster cable 1 x AC 110~240V power supplier 1 x User manual
